[GF-857B] 10 MHz Arbitrary waveform generator with customizable waveforms

10 MHz, 125 MS/s DDS arbitrary waveform generator with built-in frequency meter and USB remote control capability. It plays all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. It also has external modulation and external clock input.

€840.00
Quantity

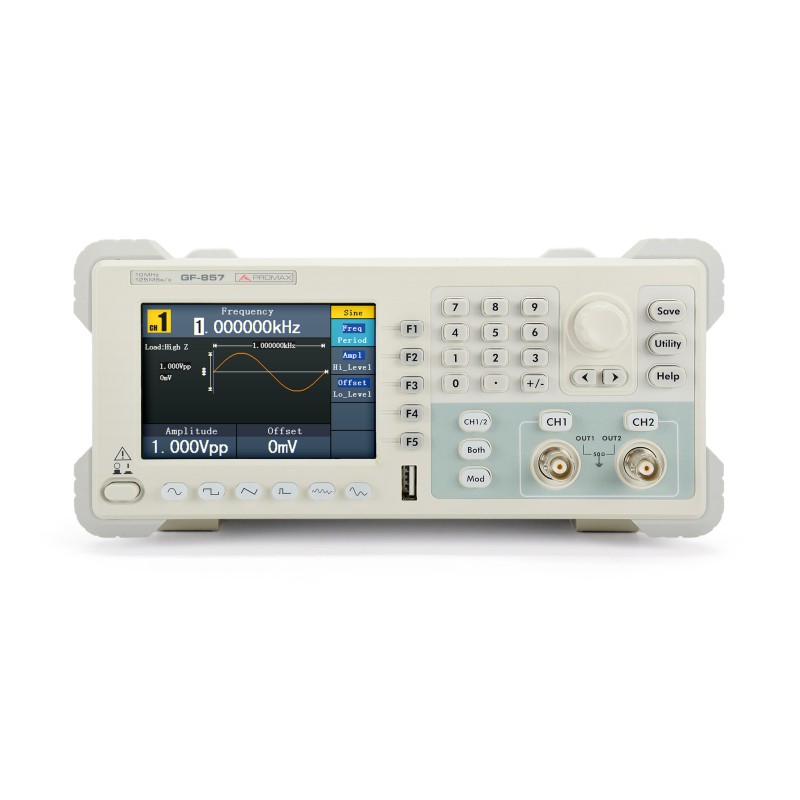

The double arbitrary waveform generator PROMAX GF-857B uses DDS technology (Digital Direct Synthesis) to provide two programmable signals that are displayed in a 4 inches color LCD screen. All basic waveform are pre-programmed (it includes 5 preprogrammed waveforms).

Additionally of the front pannel programming, the program can be debugged in the computer and uploaded via USB or optionally via RS-232. The user can create customized waveforms in the PC computer using the control software to generate them in the instrument. The front pannel has a high resolution 4 inches TFT LCD screen.

One feature that makes the generator especially interesting is the possibility of playing all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. The GF-858 also has an input for external modulation and external clock input. It includes a 200 MHz 6 digits frequency counter.

  • Frequency output: 10 MHz
  • Sampling rate: 125 MS/s
  • Vertical resolution: 14 bits
  • Standard waveforms: Sine, Square, Triangle, ±Ramp, Noise
  • Arbitrary waveforms: 48 builtin + user-defined waveforms
  • Frequency resolution: From 1 µHz to 1 / 5 / 10 MHz according to waveform (noise waveform: 25 MHz -3 dB)
  • Modulation waveforms: AM, FM, PM, FSK, Sweep, Burst
  • Counter: Built-in
  • External reference clock: Input and output
  • External trigger: Input and output
  • External modulation: Input and output
  • Display: Color 4” LCD
  • Power supply: 100 to 120 V AC/ 220 to 240 V AC 50/60 Hz
  • Dimensions: 235 (Width) x 110 (Height) x 295 (Depth) mm
  • Weight: 3 kg



GF-857B
